MTB - Razor

If exercise, a bike experience or a mode of transport is what you are looking for, the RAZOR meets these requirements and more.  In addition to offering fun, reliability and functionality, it is an affordable entry-level mountain bike that fits all life-styles.

Equipment
Frame / Saddle / Stem
Frame 27"
Seatpost 27,2 x 350 Steel E.D. Black
Saddle Cionlli 745N MTB
Handlebar Steel E.D. Black
Stem Ahead, Steel E.D. Black
Color Black
Suspension / Brakes / Wheels
Fork HL 325E Suspension Fork
Travel -
Breaks VB-965DS Alloy V-Brake, Linear Spring
Brake Leaver BG, with black Rasin Bracket
Tire Kenda K870 26
Rim Starcircle JA20 Alloy
Front Hub KT-122 Steel E.D. Black with QR
Rear Hub KT-122R Steel E.D. Black
Spokes Stainless
Razor - Drive / circuit
CRC 2393823
Headset 1 1/8 Steel E.D. Black
Bottom Bracket Fenmin 68 x 118 mm
Chainwheel GW HDL-S311 42/34/24
Chain KMC Z7
Pedal Fenmin FP-804
Front Derailleur Shimano FD-TZ-500
Rear Derailleur Shimano RD-TY300 7 Speed
Shifter Shimano SL-RS35 Revo Shifter
Freewheel Shimano MF-TZ500-7 14-28
Geometry

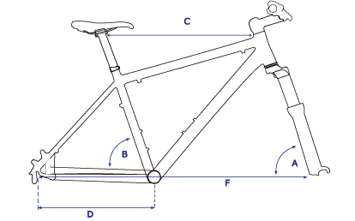

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.
