XCM600

The XCM600 is a true MTB allrounder with a sports geometry which grants agility on all terrains. Be it narrow winding single trails or hilly outskirts, this bike is built for it!

Equipment
Frame / Saddle / Stem
Frame 27.5" Alu Frame
Seatpost Alloy 27.2 x 350
Saddle Cionlli MTB
Handlebar HL MTB Alloy 6 Deg. 720 mm
Stem HL Alloy 90 mm, 10°
Color glossy blue
Suspension / Brakes / Wheels
Fork RST GILA-ML with mech. lockout
Travel 100 mm
Breakes Shimano BL-T200
Brake Leaver Shimano BL-T200
Tire DURO , 27.5x2.1 30 TPI
Rim XLM-31 alloy
Front Hub Shimano HB-TX505 Alloy disc hub
Rear Hub Shimano FH-TX505 Alloy disc hub
Spokes Stainless
Drive / Circuit
CRC 18" 2752846 / 20" 2752843
Headset FSA ZS-4
Bottom Bracket FN-B902 seal bearing 68x122 mm
Chainwheel Shimano FC-MT101 44 / 32 / 22
Chain KMC Z9
Pedal FP-818
Front Derailleur Shimano FD-M370 Altus
Rear Derailleur Shimano RD-M370 Altus
Shifter Shimano SL-M2010 Altus
Freewheel Shimano CS-HG200-9
Geometry

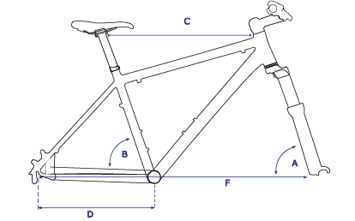

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
19" 70.0° 73.0° 558 435 - 1071 - - -
20" 69.50° 73.5° 608 mm 435 mm - 1136 mm - - 4710898131040
Download specifications
