XCL500

A true allround MTB with a sports geometry specially developped for womenWith its shorter top tube it grants agile and comfortable riding in all terrains and off road tracks.

Equipment
Frame / Saddle / Stem
Frame 27.5" Alu Frame
Seatpost Alloy 27.2 x 350
Saddle Cionlli MTB
Handlebar HL MTB Alloy 9 Deg. 640 mm
Stem HL Alloy 90 mm, 10°
Color greyblue mat
Suspension / Brakes / Wheels
Fork RST GILA-ML with mech. lockout
Travel 100 mm
Breakes Tektro HD-M276 hydraulic discbrakes
Brake Leaver Tektro HD-M276
Tire DURO , 27.5x2.1 30 TPI
Rim XLM-31 alloy
Front Hub KT-K68F Alloy disc hub
Rear Hub KT-K68R Alloy disc hub
Spokes Stainless
Drive / Circuit
CRC 16" 2752836 / 18" 2752837
Headset FP-H813PL 1 1/8"
Bottom Bracket FN-B902 seal bearing 68x121 mm
Chainwheel Samox Steel/Alloy 42 / 34 / 24
Chain KMC Z8.3
Pedal FP-915
Front Derailleur Shimano FD-TY700
Rear Derailleur Shimano RD-M360
Shifter Shimano SL-M315
Freewheel Shimano CS-HG31-8 11-32
Geometry

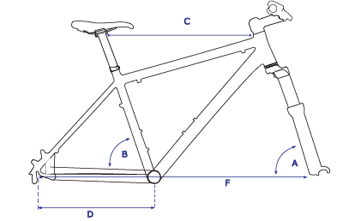

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
19" 70.0° 73.0° 558 435 - 1071 - - -
18" 70.0° 72.5° 575 430 - 1061 - - 4710898131026
Download specifications
