Preston

This all-round mountain bike offers with its sports geometry a comfortable upright riding position. If sports and recreation is your passion, this is your!

Equipment
Frame / Saddle / Stem
Frame 27.5" Alu Frame
Seatpost Alloy 27.2 x 350
Saddle DDK D-5255
Handlebar HL MTB Alloy 6 Deg. 620 mm
Stem HL Alloy 90 mm 10°
Color Forest Green
Suspension / Brakes / Wheels
Fork HL-386A mech. Lockout
Travel 60 mm
Breakes JAK-5 mech. disc brake
Brake Leaver JAK-5 for mech. disc brake
Tire KENDA 27.5x2.1
Rim PH-XLM-31 alloy
Front Hub KT-MD7F Alloy disc hub
Rear Hub KT-MD4R Alloy disc hub
Spokes UCP
Drive / Circuit
CRC 18" 381094 / 20" 381093
Headset Neco 1 1/8" Ahead
Bottom Bracket FN-B908 seal bearing 68x113mm
Chainwheel Prowheel Alloy/Steel 42 / 32 / 22
Chain KMC Z8.3
Pedal FP-906 rasin body alloy cage
Front Derailleur Shimano FD-TY500
Rear Derailleur Shimano RD-M310
Shifter Shimano ST-EF500
Freewheel Shimano CS-HG31-8 11-32
Geometry

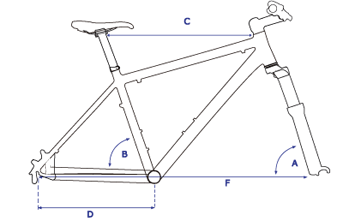

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
20" 69.3° 73.0° 600 450 - 1171 - - -
18" 69.3° 73.0° 600 450 - 1117 - - 4710898131002
Download specifications
