Pomona

A great entry level  allround mountainbike. It offers a comfortable and sporty riding position and it is equipped with sturdy and reliable components for every day use.

Equipment
Frame / Saddle / Stem
Frame 26 Alloy frame
Seatpost Alloy 27,2 x 300
Saddle DDK D-5255
Handlebar ZOOM MTB-S-152 STEEL 660 mm
Stem Alloy 90 mm 10 Deg.
Colour Anthracite
Suspension / Brakes / Wheels
Fork MJ-381D alloy/steel with disc mount
Travel 50 mm
Breakes JAK-5 Mechanical Disc Brake
Brake Leaver JAK-5 for mech. disc brake
Tire Chaoyang 26 x 2,10
Rim PH-XLM-31 Alloy
Front Hub SF-A210F for Disk Brake
Rear Hub SF-A210R for Disc Brake
Spokes Steel ED black
Antrieb / Schaltung
CRC 16" 3811098 / 20" 3811095
Headset NECO 1 1/8" ahead, steel ED black
Bottom Bracket FP-B902N 68x120 mm
Chainwheel 42/32/22 steel steel/alloy
Chain KMC Z7
Pedal FP-906 PP Body Alloy Cage
Front Derailleur Shimano FD-TY-300
Rear Derailleur Shimano RD-TY200 7 Speed
Shifter Shimano SL-RS36 Revo Shifter
Freewheel Shimano MF-TZ500 - 7
Geometry

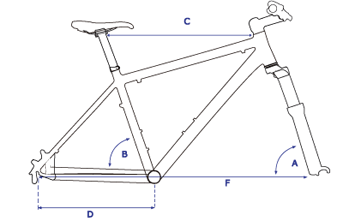

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
20" 68.5° 73.0° 615 430 - 1118 - - 471089131002
16" 68.5° 73.0° 570 mm 430 - 1072 mm - - -
Download specifications
