MTB - Outback

A good mountain bike does not have to cost a fortune. The OUTBACK, with its 6061 Alu frame and suspension fork, mechanical disc brake, is a great 21-speed MTB for easy off-road trails and park rides.

Equipment
Frame / Saddle / Stem
Rahmen 26 Alloy frame
Seatpost Alloy 27,2 x 350
Saddle VELO VL-1205
Handlebar ZOOM MTB-S-153 Steel 620 mm
Stem Alloy HL TDS-C41-8 10°
Color black-blue
Suspension / Brakes / Wheels
Fork XDS-386 alloy with disc mount
Travel 50 mm
Breakes Tektro MD-M280 Mechanical Disc
Brake Leaver Shimano STEF41
Tire KENDA K-1162; 26 x 2,1
Rim Stars Circle J16 26 Alloy
Front Hub KT-M65F for Disc Brake w/QR
Rear Hub KT-M65R for Disc Brake w/Flenge Nut
Spokes Steel ED Black
Outback - Antrieb / Schaltung
CRC 2393820
Steuersatz H-852, steel ED black
Tretlager FP-B908N 68x120 mm
Kurbelgarnitur 42/34/24 steel ED Black
Kette KMC z 8.1
Pedale FP-906 PP Body Steel Cage
Umwerfer Shimano FD-TZ-500
Schaltwerk Shimano RD-TY300 7 Speed
Schalthebel Shimano STEF41
Kassette Shimano MF-TZ21 - 7
Geometry

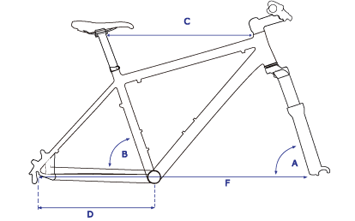

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
48 cm 71.0° 73.0° 559.8 430 - 1062 - - 4716778118385
53 cm 71.0° 73.5° 573.2 430 - - 1072 - 4716778118392
Download specifications
