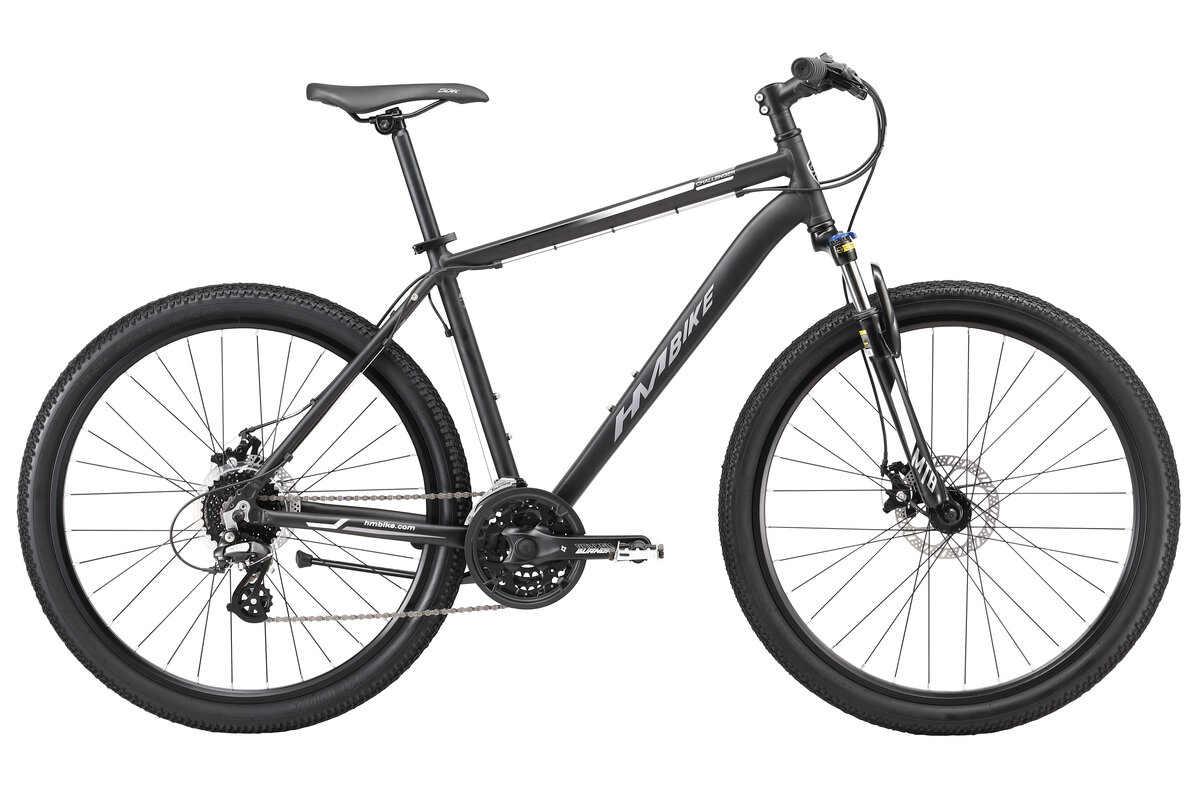

Challenger

The MTB sports geometry of our CHALLENGER model offers a comfortable upright riding position. If sports and recreation is your passion, this is yourbike!

Equipment
Suspension / Brakes / Wheels
Fork HL ZOOM 386 alloy with disc mount
Travel 60 mm
Breakes Tektro HD-M280 hydraulic discbrakes
Brake Leaver Shimano STEF500
Tire Kenda , 27.5x2.10
Rim XLM-31 alloy
Front Hub KT-K68F Alloy disc hub
Rear Hub KT-K68R Alloy disc hub
Spokes Stainless
Frame / Saddle / Stem
Frame 27.5" Alu Frame
Seatpost Alloy 27.2 x 350
Saddle DDK D-5255
Handlebar HL MTB Alloy 620 mm 6 Deg.
Stem HL Alloy 90 mm, 10°
Color Anthracite
Drive / Circuit
CRC 3811104
Headset Neco 1 1/8" Ahead
Bottom Bracket FP908 68x113 mm
Chainwheel Prowheel Steel/Alloy 42 / 32 / 22
Chain KMC Z8.3
Pedal FP-906
Front Derailleur Shimano FD-TY500
Rear Derailleur Shimano RD-M310 Altus
Shifter Shimano ST-EF500
Freewheel Shimano CS-HG31-8 11-32
Geometry

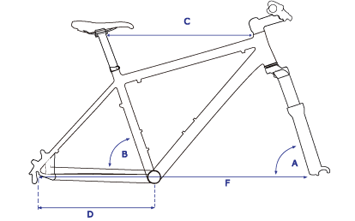

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
19" 70.0° 73.0° 558 435 - 1071 - - -
Download specifications
